My name is Jacint Ponsa. I am Engineer T. Agrícola (member 3758) and owner of the company Hidric Online, sl.
My specialty is installations related to water and energy self-consumption: Mini hydraulic turbines; irrigation; Photovoltaics; Photothermia; Hydraulic Engineering and Energy self-consumption or photovoltaic panel installations.
Below I present some of the work done and in operation. Installations made by my clients (C) or with my help. Examples of Powerspout turbines or Saloria turbines, or photovoltaic installations with or without battery.
For data protection reasons, I do not give names.
If you want help with your irrigation or photovoltaic installation or installing a hydraulic or photothermal turbine, e-mail me.
Greetings and I hope to see you soon.
Constantly updated content*
June 2024:
PHOTOVOLTAIC HOT WATER (PHOTOTERM) IN A CHEESE STORE
In a cheese factory located in the north of Catalonia, they use a lot of hot water (to heat the milk base, but also to clean). Until now they heated the water with a diesel boiler. To break the dependence on this fuel, two photothermal lines were installed. Line 1 works with a 1200 liter accumulator. Line 2 heats a 200 L domestic hot water tank.
- Line 1: FOT-T 3000 regulator with 2200Wp installed power. A 4000W-230Vac resistor has been installed. Voltage absorbed by the resistance is 167Vdc equivalent to 82% of the installed power
- Line 2: FOT-T 3000 regulator with 2750Wp of installed power. A 1500W-230Vac resistor has been installed. The ideal would have been to put a higher power resistor, but the battery cover is small and there is no room for a bigger one. Voltage absorbed by the resistor is 219Vdc, equivalent to 52% of the installed power
February 2024:
PHOTOVOLTAIC INSTALLATION 4550Wp
Design and help in the installation of a new photovoltaic installation in a completely electrically isolated area.
In an idyllic place, a family lives there, and rents out small wooden chalets, intended for indoor gatherings. The family already had some PV panels and a Pb-H battery system, but time and high consumption left the 24V system quite affected.
The supports were made by the customer and the aluminum profiles were provided.
Installed power: 4550Wp
6kW/48V Deye hybrid inverter
Battery Ion-Lithium Weco 4.4k
With the old panels, a FOT-T 2000 photothermal system is connected, heating the existing 200L accumulator. The hot water went from 15.5 to 26ºC in a short time.
December 2023-January 2024:
INSTALLATION OF 2 TF300 TURBINES
GEDERlab of the Polytechnic University of Valencia is developing a demonstrative project of various renewable energy sources and among them is the simulation of a micro-hydraulic power plant.
The micro power plant is made up of a turbine/pumping system forming a closed system with two tanks. Two turbines (model TF-650 with an estimated output of 300Wh) and a pumping system are installed in the lower part, to raise the turbined water and store it again in the upper tank.
November 2023:
INSTALLATION OF 3 VANTAGE PRO 2 WEATHER STATIONS Davis Instruments
The Cooperativa Agrícola COPERAL (Conca de Barberà) asked me to install a Vantage Pro 2 weather station in each of its manufacturing and distribution centers.
The Vantage Pro 2 model (version 2023), incorporates a more attractive screen and is connected to wifi. It allows all customers and anyone who wants to be able to view the weather data with their mobile phone through the WeatherLink App.
October 2023:
INSTALLATION OF A 200 L DHW ACCUMULATOR WITH PHOTOTHERMY
Photothermia is the concept of heating water for DHW or heating, exclusively with photovoltaic panels and a FOT-T regulator.
In this case, a 200 Lt accumulator has been installed to have enough thermal inertia of domestic hot water (DHW).
Technical sheet:
– Family: 4 people
– Location: Isolated house without electricity network connection.
– Photothermic power: 450Wp x2
– Accumulator: 200 Lt with internal coil to support the heating boiler
-Tubes: Copper D15-22-28mm
-Regulator: FOT-T VDC 2000 in box already wired with 230-12V power supply and Vdc protections
-Heat source: Electric resistance inside accumulator
Juliol 2023:
MIXED PHOTOVOLTAIC INSTALLATION 3600Wp + 900W/h HYDRAULIC TURBINE
Design and assembly of a mixed photovoltaic system combined with PLT-HP hydraulic turbine from Powerspout, on an agricultural property located in the south of Portugal. Installed power 3640Wp + 900W/h of hydraulic power (potential of 39kW/h-day).
It is an agricultural estate without a public electricity network. With the installation completed, they can work directly with the electrical energy obtained or store it in the 15.9kW lithium-ion batteries. A hybrid regulator – inverter of 8kW of active power (7840W real power) is used.
The system consists of photovoltaic panels located in the South-West direction, lithium-ion battery and hybrid regulator-inverter of 8kW of active power plus a PLT-HP hydraulic turbine powered by a D75mm PE pipe.
The South-West orientation is effective to have the batteries charged in the late afternoon. The biggest consumptions occur at noon and in the evening.
June 2023:

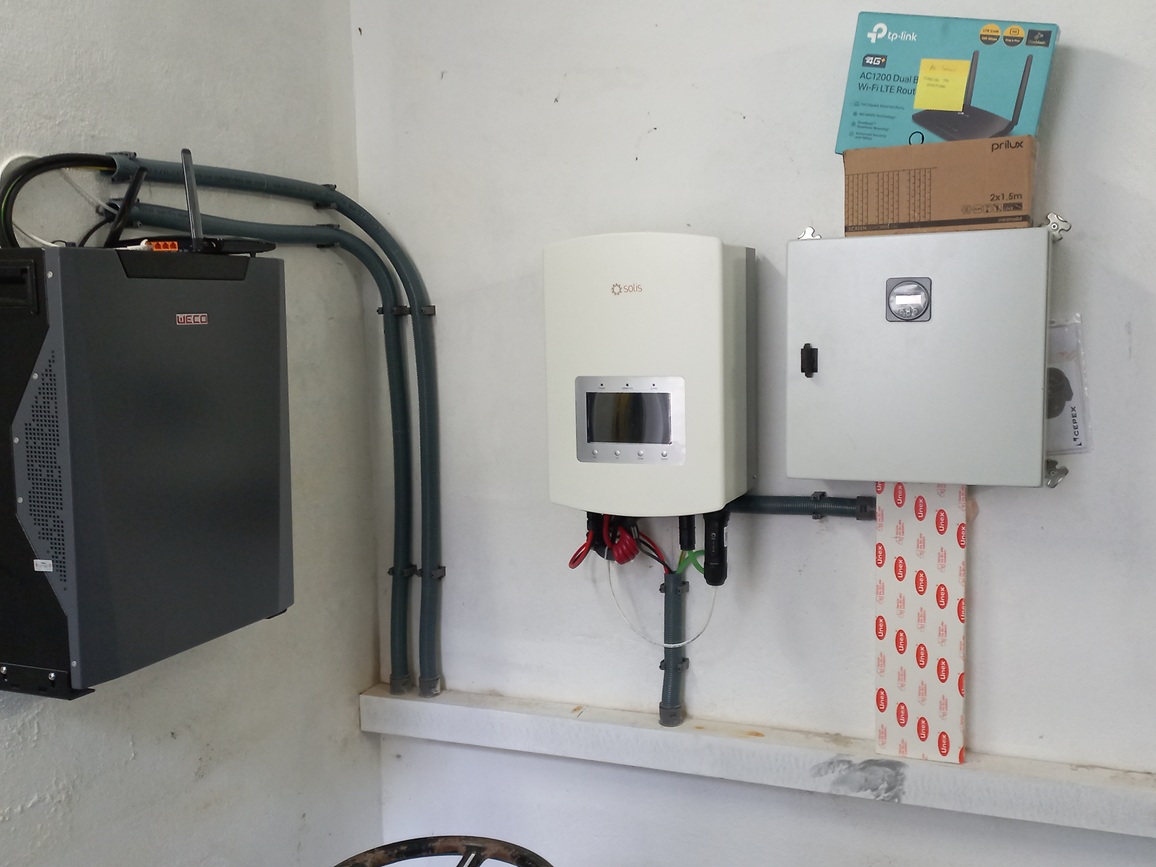

PHOTOVOLTAIC INSTALLATION 7200Wp IN A PRIVATE HOUSE
Design and assembly of a photovoltaic system, in a private house located in the Eastern Pyrenees. Installed power 7200Wp + 900W of photothermia.
With the installation done, they can have 100% photovoltaic energy. It is a house with a public electricity grid, but the client has chosen to use this grid only as a one-time support. Therefore, the system consists of photovoltaic panels, lithium-ion battery and hybrid regulator-inverter of 8kW of active power (6.5kW in isolation).
September 2022 – November 2022
DESIGN AND CONSTRUCTION OF A TFC-300 CROSS-FLOW HYDRAULIC TURBINE PROTOTYPE
The idea was to develop a mini hydraulic turbine that would work with very low slope open channels. Or with small jumps of streams or ditches.
With the full-size prototype, the manufacturing phase can be opened. Therefore, a small turbine is now available to harness small streams. The minimum flow must be around 15 L/s and a height of up to 3m. With a flow rate of 30-40 L/s, the height or slope can be 0.50 m.
OPERATION: The turbine or hydraulic roller is located horizontally. Water enters from one side and passes twice through the roller (cross flow). This allows one shaft to move and together with a transmission system turns another shaft to which the generator is connected. The output voltage is between 150 and 200 Vdc.
March-August 2022:
IRRIGATION MOUNTAIN VINEYARD
Installation of an automatic irrigation system with self-compensating drip hose in a vineyard (16500 plants).
Mountain vineyard with small fields and bundles.
OPERATION:
– Rivulis tube x.2L/h
– Separation: one drip for each plant.
Automatic irrigation system controlled by small Baccara C-1 programmers + G75 1-1/2″ closing solenoid valve.
Maximum system flow: 9500 l/h.
Pressure inside the pipe 0-4 bar (natural pressure due to gravity from the reservoir except in some fields where pumping equipment has been installed)
October 2021
CAPACITY WATER WELL OF 7m DEEP
Measurement of a 7m deep water well. It is sought to know if the planned pumping can affect the flow of the river located very close.
Capacity in four stages:
First stage: Pumping at a certain flow rate and level measurement, to determine the flow rate to be pumped.
Second stage Pumping at a certain upper flow rate and level measurement.
Third stage Pumping at a certain upper flow rate and level measurement.
Fourth stage: Recovery and level evolution with level probe (24h)
August 2021.
INSTALLATION AND COMMISSIONING TURBINE TF-500
Turbine TF-500
Net height between sheets: 2.65m
Available flow: 24 L/s, used 10-15 L/s
Output voltage: 250Vcc
Production: all production is sent to the internal network with a three-phase inverter (100% self-consumption)
July 2021.
IRRIGATE ON PRIVATE LAND
Installation of the irrigation system for a private land.
Number of sectors: 9
Emitters: RAIN-BIRD 5004 sectorial inox
Programmer: RAIN-BIRD ESP 8 sectors, expandable in 8 modules
July 2021.
TURBINE PELTON PLT
Installation done by our customer.
Powerspout Pelton PLT turbine for battery charging.
Use of a DST to avoid overvoltage Voc
Turbine voltage output 100Vcc
May 2021.
TURBINE PLT-CUBE
Powerspout PLT-CUBE Turbine, installed by a customer of ours.
Hydraulic turbine as photovoltaic support. Production 60-150W. Flow rate 0.3-0.8 L/s at 50mca approx
Output voltage: 80Vdc
48-53Vdc lithium-ion type battery charge with Voc bypass DST
November 2020.
INSTALLATION AND COMMISSIONING OF A SELF-CLEANING FILTER ON AN APPLE AND KIWIS FARM
Project capacity: 38,000 Lt/h
Installation of the irrigation head with self-cleaning filter according to differential pressure.
Hydraulic valves with radio remote control
October 2020
HELP IN THE INSTALLATION OF IRRIGATION BELT FOR CULTURAL TESTS IN AN AGRICULTURAL SCHOOL
July 2020
INSTALLATION OF HYDRAULIC SYSTEMS FOR NANO-FILTRATION USING REGENERATED WATER
All auxiliary systems are made for the reuse and utilization of waste water to be filtered with nano-filtration membranes and to use the water for the irrigation of an experimental vegetable garden.
Keywords: Water reuse, water regeneration, nano-filtration, osmosis
June 2020.
COMMISSIONING POWERSPOUT TURBINE TRG-HP-360
Project flow rate: 8 L/s
Height: 27 m
Power obtained 550-1027W (15-25kW/day)
Objective: : Direct injection and battery charge 48V open way Opzs
Regulators DST-400 + MPPT + Victron Multiplus
SEPTEMBER 2019-MARCH 2020.
DETERMINATION OF FLOW IN A MOUNTAIN RIVER
Determine the instantaneous flow, using the method of section and velocity (m/s), in a mountain river for a few months, to determine if the pumping of a nearby well affects the flow of the river.
August 2019.
DRIP IRRIGATION IN GARDEN FIELDS
Design and installation of a drip irrigation system in a 5Ha vegetable garden
June 2017
REG AUTOMATION WITH RADIO SIGNAL
Irrigation project with 14 irrigation sectors, activated with programmer and radio signal up to 450m away (the signal can reach 5000m).
A standard irrigation programmer 230Vac/24Vac and 15 outputs is used.
The radio transmitter transforms the programmer signal into a latch pulse, received by the ICP receiver
Latch field solenoid valves 9-12V
Desember 2016
ARTESIAN WELL CAPACITY 12m DEEP
Measurement of a 12m deep artesian well. It is sought to know the flow rate and the recovery capacity.
Capacity in three stages: First stage: 4 hours of pumping at a certain flow rate according to step, to determine the flow rate to be pumped. Second stage Constant pumping between 12-24h at a constant flow according to the conclusion of the first stage. Third stage Recovery period between 6-12h.
Pump activated with variator.
June 2016
HYDRAULIC TURBINE IN ISOLATED CHLORINATION TANK
Installation of a TH-600 hydraulic turbine, as support for photovoltaic energy.
It is installed in by-pass, taking advantage of a manual closing valve.
In a second by-pass, an NC hydraulic electrovalve is placed. When the battery is full the solenoid valve opens and the flow to the turbine drops.
September 2015
HYDRAULIC CALCULATIONS IN FLOATING ROOT CULTURE WITH HYDROPONIC POOL
Technical feasibility project for a greenhouse intended for vegetable cultivation, applying the hydroponic technique, with bare roots in water.
Seprember 2012.
INDIVIDUAL IRRIGATION SECTORS FOR RENTAL ORCHARDS
Pumping equipment and irrigation nozzle distribution are installed for each vegetable garden sub-plot
August 2012
PUMPING FOR SPRING AND DRIP IRRIGATION IN MOUNTAIN AREA
Pumping equipment consisting of two ESPA pumps, with scalable performance and variators.
Fertigation equipment with venturi is also installed.
Aluminum tube for irrigation sectors and mini-irrigation cannons S35 are supplied
November 2011.
IRRIGATION WITH EXUDING TAPE FOR GARDEN + DRIP IN FRUIT TREES
Installation made in Ibiza, for an orchard (Crestall stall type), with 10,000ml exuding tape (former Poritex).
Drip tube, with self-compensating button dripper (8L/h), for fruit trees
Pump with solenoid valves and irrigation scheduler with activation on demand, based on soil moisture sensor (Acclima model)
Irrigation sectors located in the field with 3-way hydraulic solenoid valve with built-in pressure reducer. Baccara model 1-1/2″ with 3VNO solenoid
August 2010.
ROMAN MUSEUM HUMIDIFICATION SYSTEM
Humidification system of some Roman ruins located inside the Roman Museum in a city.
The moistening was done to avoid a desiccation of the walls (base of the old Roman wall), which had been buried for about 1500 years. To preserve it from sudden changes in temperature and humidity they asked me to install a humidification system (with large drops, so it couldn’t be spraying).
It uses several activated sectors with Watermark humidity sensors and automatic opening according to the degree of humidity inside the wall. For humidification, low-flow Rivulis emitters (2 l/h) were used at a network pressure (2-3 bar)
January 2010:
DESIGN AND CONSTRUCTION OF A TERTIARY WASTEWATER TREATMENT PLANT USED FOR HYDROPONIC GARDENING
The client of this work has an effluent with a high content of organic matter and needs to use the water to irrigate his vegetable garden.
The direct application of water (effluent) for irrigation was not viable due to the high content of organic matter.
A study was carried out of necessary volumes and flows and objectives to be met for irrigation water.
The installation consists of: A reception tank that acts as a reserve to be refilled when there is an influx of effluent. A decanter and coarse particle filter. A pump suitable for waste water. An organic filtration system made up of a 60ml (approx) PVC tube. The filtration was done with plants adapted to a high content of organic matter, and with bare roots (direct root-effluent contact, with intervals of 30-30min).
A second accumulation tank for the collection of filtered water. A second pump takes the water to an activated carbon filter and UV light to remove batteries and viruses and leads the water to a third covered (dark) tank. The final water is used to irrigate the vegetable garden with self-compensating drip before a 150 mesh filter.
The system is automatic, both from the initial collection to the first tank and the irrigation in the vegetable garden. The most important maintenance is with the replacement of the plants that carry out the organic filtration.
September 2008
MASTER PLAN FOR WATER SUPPLY IN VILLAGES OF THE PRE-PYRENEES
Master Plan for Drinking Water Supply in high water, in a municipality of a town in the Pre-Pyrenees.
Catchments and the annual volume of water supplied are accounted for.
Daily deposits and reserves are accounted for
Daily/annual consumption is accounted for
Current consumption is projected within the period 2008-2018 and the deficiencies and improvement actions to be determined
October de 2007.
HYDRAULIC INSTALLATION OF AN ORNAMENTAL FOUNTAIN
Circular ornamental fountain with a central outlet in column and circular ring.
Central circuit with variator start. Flow rate 14 m3/h
Secondary circuit with gradual start. Flow rate 25 m3/h
5m3 capacity regulation tank with filter and extra chlorination circuit.
March 2007.
FILTRATION HEAD WITH SAND FILTERS
Filtration head with pump 25m3/h, differential pressure switch, sand filters, ring filters and distribution to solenoid valves.
Desember 2006.
IRRIGATION SYSTEM FOR GRASS CULTIVATION, WITH TOTAL FIXED COVERAGE BURIED -Menorca-
Irrigation system made up of 20 sectors with MP-Rotator emitters.
Total buried coverage, Max. 1.5 bar. max. per sector 10 m3/h
Programmer Nelson 24 sectors 220/24Vac
Octurbre 2005.
ESTUDI INFILTRACIÓ AIGUA DE REG DINS UN CULTIU DE GESPA
Determinació de la velocitat d’infiltració de l’aigua de reg (o pluja), en un cultiu de gespa.
Disseny agronòmic del reg. Càlcul del temps de reg, frequència i intèrval entre regs.
Estudi d’estalvi d’aigua de reg, utilitzant programador per temps o programador activat amb sensor d’humitat del sòl
